Audio Video Products

Got Cable? Every balun, hub or adapter needs CABLE... Click here to order
S-Video, xVGA, and Baseband Video with Stereo Audio, both Baluns and Distribution Configurations.

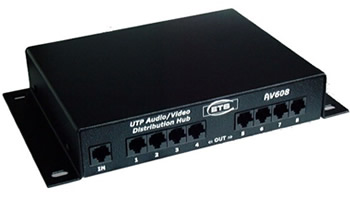

AV600 Series AV600 Series     PDF
Baseband Video + Audio Distribution

  The ETS CAT5 A/V Broadcast System is a UTP Audio/Video Distribution Hub. It has baseband video with two channels of line-level audio transmitted through the distribution amplifier, creating 8 output sets (video + stereo audio) from a single source. The powered  AV608 can be cascaded twice (three tiers), yielding a total distribution of 512 displays from just one input source.
  NTSC, PAL, SECAM or CCTV signals are converted to and from UTP using the AV900 or AV901 Baseband Audio/Video Baluns. Alternatively, the AV602 or AV603 Isolated Video/Audio Source Balun may be used between the signal source and the first AV608. The AV602 or AV603 provides full isolation of the video signal, preventing the visual artifacts that can be caused by ground loops.

  The AV608 System supports color video and stereo audio over a total run length in excess of 330 meters (inclusive of all cable segments) on Category 5 or better cable. Black and white signals will typically be supported up to 750 meters.

Info Part# Price (ea.) Purchase
Isolated Video/Audio Source, (1) FBNC + (2) RCA Jack to RJ45 Jack, pins 1,2,3,6,7&8 AV602 $96.50
Isolated Video/Audio Source,(3) RCA Jack to RJ45 Jack, pins 1,2,3,6,7&8 AV603 $96.50
UTP Audio/Video Distribution Hub, 8 Channel AV608 $689.30
go to top

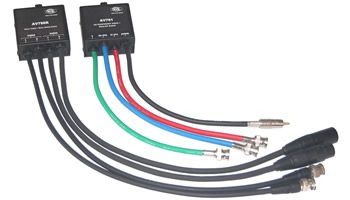

AV790 Series AV790 Series     PDF
Audio Video Camcorder Balun

  The ETS AV790 Series of video camcorder and audio baluns enable video cameras to send HD component signals, composite video signals, and analog audio signals over a single CAT5, CAT5E, or CAT6 UTP cable!

  Optional configurations: four composite video, HD component video + audio and dual composite video/dual mono-audio. Used in pairs, the ETS baluns support 480p to 1080p video formats.

  ETS has designed a custom part for a customer for use with SetCom™ devices. The AV790, AV794, and AV796 models used in this application are both highly cost-effective and quickly and neatly installed. The single UTP cable replaces more costly and much heavier coaxial cables.

Info Part# Price (ea.) Purchase
Dual Video/Dual Analog Audio, (2) MBNC + (1) MXLR, (1) FXLR, 3ft pitgail to Ethercon RJ45 jack, all pins AV790R $225.75
Set of AV790T & AV790R AV790S $435.75
Dual Video/Dual Analog Audio, (2) MBNC + (1) RCA plug, 2ft + (1) MXLR, 3ft long pigtail to Ethercon RJ45 jack, all pins AV790T $210.00
HD Component + Analog Audio, (3) MBNC + (1) RCA plug 10" pigtail to Ethercon RJ45 jack, all pins AV791 $196.50
HD Component + Analog Audio, (3) MBNC + 1 RCA plug 18" long pigtail to Ethercon RJ45 jack, all pins AV792 $200.75
Dual Video/Dual Mono Audio (2) MBNC + (1) FXLR + (1) MXLR, 3ft pigtail to Ethercon RJ45 jack, all pins AV794R $221.50
Set of AV794T & AV794R AV794S $431.25
Dual Video/Dual Mono Audio (2) MBNC + (1) MXLR + (1) FXLR, 2ft pigtail to Ethercon RJ45 jack, all pins AV794T $209.75
Dual Video/Dual Mono Audio (2) MBNC + (1) FXLR + (1) MXLR, 16" pigtail to Ethercon RJ45 jack, all pins AV796R $201.25
Set AV796T & AV796R AV796S $402.50
Dual Video/Dual Mono Audio (2) MBNC + (1) MXLR + (1) FXLR, 16" pigtail to Ethercon RJ45 jack, all pins AV796T $201.25
Quad Video, (4) MBNC 1ft pigtail to Ethercon RJ45 jack, all pins PV790 $189.25
Quad Video, (4) MBNC 2ft pigtail to Ethercon RJ45 jack, all pins PV791 $199.00
go to top

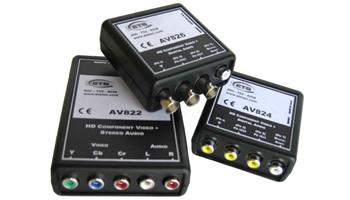

AV820 Series AV820 Series     PDF
High Definition Component Video + Audio Baluns

  The ETS AV820 Series of High Definition Component Video + Audio Baluns are designed for ease of use and consistent signal labeling in applications that utilize component video signals.

  Component video formats include RGB, YUV, YIQ and YCrCb. Custom labeling is available for use with your application as required (YCrCb shown above). Due to custom labeling requirements, additional lead times may apply for these products.

  YCrCb component video is a recent addition to consumer equipment found on some DVD players, high-end televisions and home theater equipment. Professional uses include cameras and VTRs based upon any of the above standards.

  High Definition Component Video + Audio for high-end home and professional theaters will transmit signals from 480p to 1080p resolution video.

AV822 requires two Category 5 cables for transmission.

Info Part# Price (ea.) Purchase
HDCVB + Stereo Audio, (5) RCA jacks to (2) RJ45 jacks Video: pins 1,2,3,6,7 & 8 on RJ45 jack #1 Audio: pins 1,2,3 & 6 on RJ45 jack #2 AV822 $202.00
HDCVB + Mono Audio (4) RCA jacks to RJ45 jack, all pins AV823 $161.60
HDCVB + Digital Audio (4) RCA jacks to RJ45 jack, all pins AV824 $179.60
HDCVB + Mono Audio (3) FBNCs + (1) RCA to RJ45 jack AV825 $161.60
HDCVB + Digital Audio (3) FBNCs + (1) RCA to RJ45 jack AV826 $179.60
Set of 3 Color Coded Coax RG59U Jumpers 12" each PV890-J3 $15.00
go to top

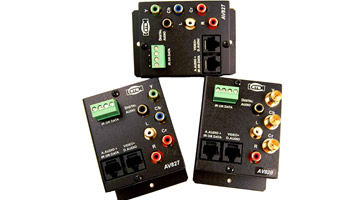

AV820 Series - AV827, AV828 AV820 Series - AV827, AV828   Video   PDF
HDTV Balun with Data and IR + Audio Baluns

  The ETS AV827 is a High Definition Component Video + Digital Audio + Analog Stereo Audio + IR or Data Pass Through balun. This balun is designed for ease of use and consistent signal labeling in applications that utilize component video signals.

  Component video formats include RGB, YUV, YIQ and YPbPr. Custom labeling is available for use with your application as required (YPbPr shown above). Due to custom labeling requirements, additional lead times may apply for these baluns.

  YPbPr component video is a recent addition to consumer equipment found on some DVD players, high-end televisions, and home theater equipment. Professional uses include cameras and VTRs based upon any of the above standards.

  The High Definition Component Video + Digital Audio + Analog Stereo Audio + IR or Data Pass Through balun series is for high-end home and professional theaters that transmit signals from 480p to 1080p resolution video.

Info Part# Price (ea.) Purchase
HDCVB + Digital Audio + Stereo Audio + IR or Data Pass Through, (6) RCA jacks + screw terminals to (2) RJ45, jacks, all pins AV827 $240.25
HDCVB + Digital Audio + Stereo Audio + IR or Data Pass Through (3) FBNC for Video + (3) RCA jacks + screw terminals to (2) RJ45 jacks, all pins AV828 $241.25
go to top

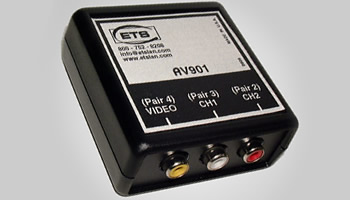

AV900 Series AV900 Series     PDF
Baseband Video/Stereo Audio Baluns

  The ETS AV900 and AV901 Baseband Video/Stereo Audio Baluns are utilized for point-to-point replacement of coaxial (video) and shielded (high impedance audio) cables with UTP wiring, Category 5 or better.

  The AV900 (with a FBNC video input plus dual RCA jacks for audio) and the AV901 (with 3 RCA jacks for all inputs) are designed for installations that have a need for separate audio channels. For example, some VCRs and Video Cameras have video plus stereo outputs available on three RCA jacks. The AV901 can run these signals using three of the four pairs in standard UTP cable.

    The AV905 and AV906, which allow you to send two channels each of baseband video and audio in any direction desired. This capability yields, for instance, a bi-directional video + mono audio link, or many other configurations.

Info Part# Price (ea.) Purchase
VSB (1) FBNC video pins 8,7 + (2) RCA jack Audio to RJ45 jack, pins 1,2 & 3,6 AV900 $85.00
VSB + Pass Through, (1) FBNC + (2) RCA jacks + (1) 2 position terminal to RJ45, all pairs used AV900PT $98.20
VSB (1) FBNC video pins 8,7 + Screw terminals Audio to RJ45 jack, pins 1,2 & 3,6 AV900S $88.20
VSB (3) RCA jack, Video, pins 8,7 + (2) Audio to RJ45 jack, pins 1,2 & 3,6 AV901 $91.30
VSB + Pass Through, (3) RCA jacks + (1) 2 position terminal to RJ45, all pairs used AV901PT $98.20
DVDA, (2) FBNC Video pins 1,2 * 7,8 + (2) RCA jack Audio to RJ45, pins 3,6 & 5,4 AV905 $117.70
DVDA, (2) RCA jack Video pins 1,2 & 7,8 + (2) RCA jack Audio to RJ45 jack, pins 3,6 & 5, 4 AV906 $117.70
go to top


AV900WP Series AV900WP Series     PDF
Baseband Video/Stereo Audio Wall Plates

  The ETS AV900WP, AV901WP and AV906WP Baseband Video/Stereo Wall Plates which are utilized for point-to-point replacement of coaxial (video) and shielded (high impedance audio) cables with UTP wiring, Category 5 or better.

  The AV901WP (with 3 RCA jacks for all inputs) is designed for installations that have a need for separate audio channels.  For example, some VCRs and Video Cameras have video plus stereo outputs available on three RCA jacks. The AV901WP can run these signals using three of the four pairs in standard UTP cable.

  AV906WP (with 4 RCA jacks for all inputs) allows you to send two channels each of baseband video and audio in any direction desired. This capability yields, for instance, a bi-directional video + mono audio link, or many other configurations.

You get the same high quality baluns with the addition of an enhanced appearance of wall plates, giving you a neat, professional installation.

Info Part# Price (ea.) Purchase
Video + Stereo Audio (1) FBNC + (2) RCA jacks to 110 punch-down AV900WP-X $95.50
Video + Stereo Audio (3) RCA jack to 110 punch-down AV901WP-X $95.50
Dual Video + Dual Audio (4) RCA jack to 110 punch-down AV906WP-X $125.95
go to top

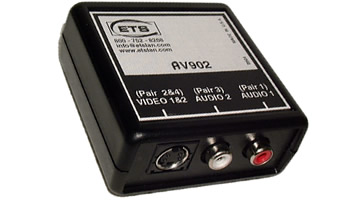

AV902 Series AV902 Series     PDF
S-Video / Stereo Audio Baluns

    The ETS AV902 S-Video/Stereo Audio Balun adapts Cat5 or better premise wiring for use with Super-VHS, Hi-8 and other "Y/C" format, high quality video signals. The AV902 uses the industry standard 4 pin mini-DIN connector for video, and RCA jacks for the two audio channels. This arrangement complements the connectors on most high-end consumer and Y/C format professional video devices.

    The AV902 is a passive (non-powered) device. It is bi-directional, in the sense that identical baluns are used on transmit and receive ends of the run of UTP. Used in pairs to adapt both ends of a run of Cat5 or better cable, the result is clean, transparent video and audio transmitted over distances exceeding 300 meters.

    The AV918 is a (powered) UTP S-Video/Stereo Distribution Hub which has two channels with audio transmission through the distribution amplifier creating 8 output sets from a single source.

Info Part# Price (ea.) Purchase
S-Video (Mini-DIN) + (2) RCA Audio to RJ45 jack (video) pins 1,2 & 7,8; (audio) pins 4,5 & 3,6 AV902 $114.50
S-Video, 8 Channel Distribution Hub AV918 $955.50
go to top


AV902WP Series AV902WP Series     PDF
S-Video + Stereo Audio, Mini-DIN & (2) RCA jack to 110 punch down

  The ETS AV902WP S-Video/Stereo Audio Balun wall plates with pre-labeled ports allowing for easy identification and giving neater complementary professional appearing installations.

  The AV902WP adapts Category 5 or better premise wiring for use with Super-VHS, Hi-8 and other "Y/C" format, high quality video signals. The AV902WP uses the industry standard 4 pin mini-DIN connector for video, and RCA jacks for the two audio channels. This arrangement complements the connectors on most high-end consumer and Y/C format professional video devices.

  The AV902WP is a passive (non-powered) device. It is bi-directional, in the sense that identical baluns are used on transmit and receive ends of the run of UTP. Used in pairs to adapt both ends of a run of Category 5 or better cable, the result is clean, transparent video and audio transmitted over distances in excess of 300 meters.

$125.00  item# AV902WP-X go to top

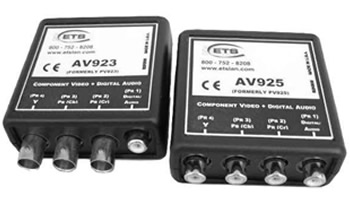

AV920 Series AV920 Series     PDF
Component Video + Audio Baluns

  The ETS AV920 Series of Component Video + Audio Baluns are designed for ease of use and consistent signal labeling in applications that utilize component video signals.

  Component video formats include RGB, YUV, YIQ and YCrCb. Custom label is available for use with specific application as required (YCrCb shown above). Due to custom labeling requirements, additional lead times may apply for these products.

  YCrCb component video is a recent addition to consumer equipment found on some DVD players, high-end televisions, and home theater equipment. Professional uses include cameras and VTRs based upon any of the above standards.

  The AV923 and AV925 enable sending component video and digital audio signals on single run CAT5 or better UTP.

Note: AV929 requires two CAT5 cables for transmission.

Info Part# Price (ea.) Purchase
CV+Mono Audio (3) FBNC + (1) RCA jack to RJ45 jack all pins AV920 $118.00
CV+Mono Audio, (4) RCA jacks to RJ45 jack, all pins AV921 $118.00
CV+Mono Audio, (4) RCA jacks to RJ45 jacks to 110 punch down AV921WP-X $129.00
CV+DA (3) FBNC + (1) RCA jack to RJ45 jack, all pins AV923 $133.50
CV+DA (4) RCA jacks to RJ45 jack, all pins AV925 $133.50
CV+DA (4) RCA jacks to RJ45 jacks to 110 punch down AV925WP-X $144.90
CV+Stereo Audio (5) RCA jacks to (2) RJ45 jacks AV929 $153.50
Set of 3 Color Coded Coax RG59U Jumpers 12" each PV890-J3 $15.00
go to top

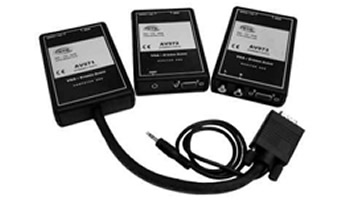

AV970 Series AV970 Series     PDF
VGA + Stereo Audio Video Balun, Set

  The ETS AV970 VGA Video + Stereo Audio Balun Set allows computer video + stereo audio signals that adhere to the VGA/SVGA/XVGA standards to be transmitted over Category 5 or better UTP cable. All modes and resolutions operate normally.

  Distance and quality of transmission are dependent on the type of cable used and monitor sync circuitry. Ordinary UTP cabling may be used; however, distance and quality are enhanced with Cat5 or better cable. The circuitry in the AV970 set of VGA video baluns is fully passive, requiring no external power.

NOTE: For transmission, two Cat5 cables are required.

Info Part# Price (ea.) Purchase
Set, VGA+Stereo Audio Baluns: AV971 + AV973 AV970 $248.50
Computer End (Mini-Plug for Stereo Audio) AV971 $124.25
Monitor End, VGA + Stereo mini jack to RJ45 jack AV972 $124.25
Monitor End (RCA Jack for Stereo Audio) AV973 $124.25
Set, VGA+Stereo Audio Baluns: AV971 + AV972 AV974 $248.50
go to top

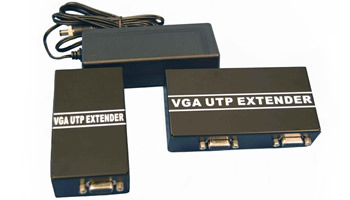

AV974G Series AV974G Series     PDF
Active VGA Video + Audio Balun, Set

  The ETS AV974G Active VGA Video Balun Set enables computer video signals that adhere to the VGA/ SVGA, XVGA standards to be transmitted over Category 5 or better UTP cable up to 500 feet away with resolution up to 1024 x 768 with an added feature for an audio signal.

  The AV975G (computer end) duplicates the input signal for local use and transmits the VGA + Audio signal to the AV976G (monitor end) broadcasts the signal to a single VGA + Audio outputs.

A user adjustment screw for gain and equalization ensures optimum signal clarity. A small screwdriver for adjustment is included.

NA  item# go to top
