Video Products

PV620 Series
Baseband Video Panels

    The ETS Baseband Video Baluns have now been expanded to a panel version, the 24-port Baseband Video Panel. As with the PV840 Extended Baseband Video Baluns, the panel version also allows you the freedom to use UTP or 25-pair cable instead of costly coax to transmit baseband video signals throughout a facility, with better signal characteristics, at a lower cost. Depending upon your application, you may be able to utilize previously installed wiring, with a corresponding dramatic reduction in installation costs.

    24-port video panels are available with FBNC connectors to RJ45 jacks or to a 50-pin Telco. You can transmit baseband signals on a Cat5 or better UTP or 25-pair cable.

    As with the ETS Extended Baseband baluns, color at distances in excess of 330 meters is supported, depending on the cable type. Black and white signals will typically be supported up to 750 meters.

PV800 Series
Extended Baseband Video Baluns with Power to the Camera

  The ETS Extended Baseband Video Balun has the added feature of power sent through UTP cables rather than using costly coax cable for low voltage. The Extended Baseband Video Baluns with Power to the Camera (PV800 Series) combines video and power into a single UTP cable where the video signals are transported up to 1500ft for black and white and 1000ft for color.*

  Two pairs of the 3 unused pairs in the existing cable are used for power, leaving 1 unused pair to provide adequate handling of current over the distances of the cable.

* NOTE: The maximum distance for power will vary, depending on the requirements of the power devices being used, as there is some voltage drop over the distance of the cable ? up to 300 feet with 12VDC at current less than 500mA

PV820 Series
High Definition Component Video Balun

  The ETS PV820 Series of High Definition Component Video Baluns are designed for ease of use and consistent signal labeling in applications utilizing component video signals.

  Component video formats include RGB, YUV, YIQ and YCrCb. The PV820/PV821 baluns are functionally identical to the PV920 Series with the exception that the PV820 Series has greater bandwidth, yielding higher pixel resolution.

  YCrCb component video is a recent addition to consumer equipment found on some DVD players, high-end televisions, and home theater equipment. Professional uses include cameras and DVRs based upon any of the above standards.

  High-Definition Component Video PV820/PV821 for high-end home and professional theaters will transmit signals from 480p to 1080p resolution video.

PV822 Series
HDCVB, RCA plug to screwless terminals

  The ETS PV822 High Definition Component Video Baluns are designed for ease of use and consistent signal labeling in applications utilizing component video signals.  Each ultra-compact, passive, analog unit is fitted with a male RCA plug on one end with a tool-less strip and push two-wire connector on the other end. Three PV822 units are used on each end of a CAT5 or CAT6 cable for Y, Cb and Cr video signals.

  YCbCr component video is a recent addition to consumer equipment found on some DVD players, high-end televisions, and home theater equipment. Professional uses include cameras and VTRs based upon any of the above standards. PV822 units, together with balanced CAT5 or CAT6 cable, will eliminate interference and ground loops that often cause video "hum bars" and frequently defeat coax solutions.

  Since only 3 of the 4 pairs of wires are used with the CAT5 or CAT6 cable, the remaining pair can be used with ETS Digital Audio Baluns (PA881) which have an RCA jack to an RJ45 jack and uses pins 5, 4. With this setup, the application is fully transparent.

$52.50  item# PV822

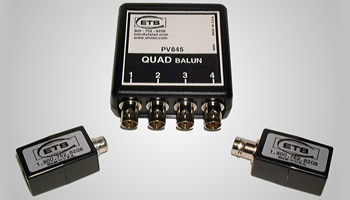

PV840 Series
Extended Baseband Video Baluns

  The ETS PV840 Extended Baseband Video Baluns grant you the freedom to use UTP instead of costly coax to transmit baseband video signals throughout your facility, with better signal characteristics, and at a lower cost. Depending upon the application, it may be possible to utilize previously installed wiring with a corresponding dramatic reduction in the costs of installation.

  Single, Dual, and Quad baseband video baluns are available. Using the PV845 Quad Balun, you can transmit four distinct baseband video signals on a single run of Cat5 or better UTP, utilizing all four pairs in the cable. Since each pair has a carefully balanced signal on it, you can actually run video in two directions on different pairs simultaneously.

  The PV840 Series of baluns supports color video at distances in excess of 330 meters (depending upon cable type). Black and white signals will typically be supported up to 750 meters.

PV840WP Series
Quad Baseband Video (4) RCA jack to 110 punch down

The ETS PV847WP Extended Baseband Video Wall Plate has been designed with a new flat circuit board and decorator wall plate, providing top signal transmission capability and neater, more complementary installations.

The PV847WP allows you the freedom to use UTP instead of costly coax to transmit baseband video signals throughout your facility, with better signal characteristics, at a lower cost. Depending on your application, you may be able to utilize previously installed wiring, with a corresponding dramatic improvement in cost of installation.

Using the PV847WP (with 4 RCA jacks for all inputs) Quad video, you can transmit 4 distinct baseband video signals on a single run of Cat5 or better UTP, utilizing all four pairs in the cable. Since each pair has a carefully balanced signal, you can run video in two directions on different pairs simultaneously.

The PV847WP supports color video at distances in excess of 330 meters, depending on cable type. Black and white signals will typically be supported up to 750 meters.

$146.20 White Ivory  item# PV847WP-X

PV850 Series
Serial Digital Video Media Converter

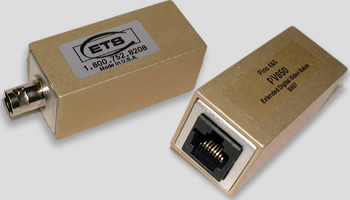

  The ETS PV850 Serial Digital Video Media Converter is designed to run SMPTE 259M video signals over high-performance UTP (Cat5e or better). NTSC143, PAL177, high-definition 270Mbps are all broadcast video standards that can be accommodated by the PV850.

  Balancing the signal within 0.3%, the PV850 reduces EM radiation, enabling the use of unshielded cables while still meeting FCC requirements.  The PV850 has been verified FCC-compliant when used with enhanced performance UTP cabling like Belden's MediaTwist™. When used with such cable, run-lengths of 135 meters (450 feet) can be readily achieved.

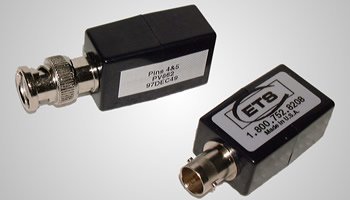

PV860 Series
NTSC Video Balun - BNC female to RJ45: 4, 5

  The ETS PV860 Series of NTSC Baseband Video Baluns are the original video balun for use in adapting baseband video to run over UTP. In comparison to our PV840 baluns, the PV860 offers potentially greater run lengths, depending on cable quality, due to careful impedance matching. Conversely, the frequency range of the PV860 is lower - the PV840 offers extended high-end frequency response for better synchronization.

$50.50  item# PV861B

PV880 Series
Broadband Video Baluns

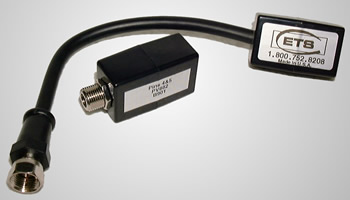

  Broadband video (CATV) over UTP, once thought to be impractical (or impossible), is now commonplace, due to the use of the PV880 Series of Broadband Video Baluns from ETS. Commercial and professional grade video can be transmitted over Category 5 and better UTP.

  Distance is a function of frequency and signal level. Using Category 5 or better cable, all channels up to 26, at a drive level of not more than 36dBmV will accommodate 100 meters. The usable distance is reduced at higher channels, reaching 50 meters at channel 78.

APPLICATION NOTE:
Off-air channel 26 is 542MHz to 548MHz. CATV enables packing channels into unused on-air frequencies.

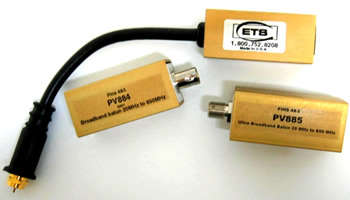

PV884, PV885, PV888, PV889
ULTRA Broadband Video Baluns

  Expanding the applications opened by its Broadband Video Baluns, ETS introduces the PV884 and PV885 - ULTRA Broadband Video Baluns. Frequency range has been increased and EMI reduced, both due to enhanced filtering and an all-metal enclosure.

  FCC requirements preclude boosting signal levels to the values required to guarantee preset distances. Distance achievable is a function of signal level, balance and the degree to which the cable used unbalances the signal. Cat5e maintains signal balance at least 5dB better than Cat5.  Level 7 or equivalent cable is another 5dB better, providing for a signal drive level of not more than 46dBmV.

  The PV884 offers a BNC connector for use with professional grade equipment. "Prosumer" and consumer electronics that connect using 'F' connectors require the ETS PV885 or PV888 baluns.

PV887 CATV Isolator
CATV Isolator, F connector, input & output

Expanding the applications opened by Broadband Video Baluns, ETS adds the PV887 CAT5 Isolator to the ETS line of Broadband Video Baluns.

The CATV Isolator breaks the connection between the input and the output, blocking DC voltages. The TV signals up to channel 82 (20MHz to 550MHz) are easily transmitted across the barrier.

CATV Isolator can locate anywhere between the antenna and the TV set.

The PV887 offers 'F'-type connectors for input and output.

$56.75  item# PV887

PV890 Series
RGB Video Baluns

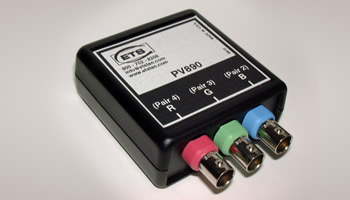

  The ETS PV890 Series of RGB Video Baluns enable sending RGB video signals over standard telecom wiring (UTP), of Category 3 or better quality. The PV890 supports RGB with SOG (sync on green), using 3 pairs of UTP. The PV891 enables RGB with separate sync to be run using 4 pairs.

  Both baluns support monitors with resolutions up to 1024 x 768 pixels, at refresh rates of up to 75Hz. The RGB Baluns enable the user or installer to take advantage of pre-installed telecom wiring, or to gain the cost advantage of wiring with UTP instead of coax.

  PV890 baluns optionally ship with 3 color-coded coax jumper cables to connect to the source and receiving equipment. (Order part number RGBJ3 for each set).

PV907 Series

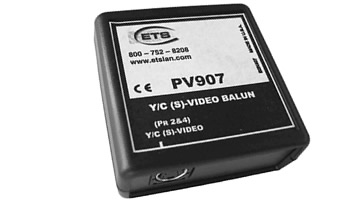

S-Video Baluns

  The ETS PV907 S-Video adapts Category 5 or better premise wiring for use with Super-VHS, Hi-8 and other "Y/C" format, high-quality video signals.

    The PV907 uses the industry-standard 4 pin mini-DIN connector. This arrangement matches the
connector on most high-end consumer and Y/C format professional video devices.

  The PV907 is a passive (non-powered) device.  It is bi-directional, in the sense that identical baluns are used on transmit and receive ends of the run of UTP. Used in pairs to adapt both ends of a run of Category 5 or better cable, the result is clean, transparent video transmitted over distances in excess of 300 meters.

PV907WP Series
S-Video without audio 4 pin Mini DIN to 110 punch down

  The ETS PV907WP S-Video Balun has been redesigned with a new flat circuit board and is used for point-to-point replacement of coaxial (video) when used with UTP wiring, Category 5 or better.

  The PV907WP S-Video Balun with an industry-standard 4-pin Mini DIN connector is designed for installations that require high-end consumer and Y/C format professional video devices.

  The PV907WP S-Video Balun is a passive (non-powered) device. It is bi-directional, in that identical baluns are used on transmit and receive ends of the run of UTP. Used in pairs to adapt both ends of a run of Category 5 or better cable, the result is clean, transparent video signals transmitted over distances in excess of 300 meters.

$76.50 White Ivory  item# PV907WP-X

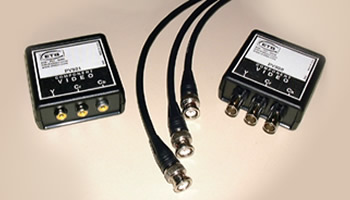

PV920 Series
Component Video Baluns

  The ETS PV920 Series of Component Video Baluns are designed for ease of use and consistent signal labeling in applications utilizing component video signals.

  Component video formats include RGB, YUV, YIQ and YCbCr. The PV920 baluns are functionally identical to the PV890 series, but may be custom labeled for use with your application as required (YCbCr shown above).  Due to custom labeling requirements, additional lead times may apply for these products.

  YCbCr component video is a recent addition to consumer equipment found on some DVD players, high-end televisions and home theater equipment. Professional uses include cameras and VCRs based upon any of the above standards.

  The PV926 allows you to send Component Video and infrared signals on the single run cat5 or better UTP.

PV920DW Series
DW Component Video (3) RCA jacks to 110 punch down

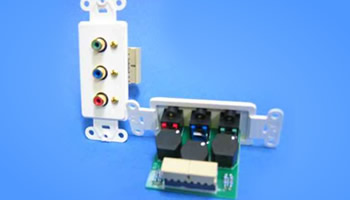

  The ETS PV921DW Component Video Decora Wall Plate has been designed with a new flat circuit board and decorator wall plate giving neater, more professional installations by complementing existing wall plates. For ease of use, all ports are color coded, giving consistent signal labeling for applications utilizing component video signals.

      The completely passive PV921DW features gold-plated female RCA connectors on a modular Decora faceplate and fits in a standard-depth wall box.

    Component video formats include RGB, YUV, YIQ and YCbCr. The PV921DW Decorator Wall Plate is functionally identical to the PV921WP.

    YbCr component video is a recent addition to consumer equipment, found on some DVD players, high-end televisions, and home theater equipment.
Professional uses include cameras and VTRs based upon any of the above standards.

$117.75 White Ivory  item# PV921DW-X

PV920WP Series
Component Video Wall Plates

  The ETS PV920WP/PV921WP Component Video Wall Plate has been designed with a new flat circuit board and decorator wall plate giving neater, more professional installations by complementing existing wall plates. For ease of use all ports are pre-labeled for consistent signal labeling for applications utilizing component video signals.

  Components video formats include RGB, YUV, YIQ and YCbCr. The PV920WP/PV921WP Wall Plate Balun are functionally identical to the PV890WP, but may be labeled for use with your application as required (YCbCr shown above). Due to custom labeling requirements, additional lead times may apply for these products.

  YCbCr component video is a recent addition to consumer equipment, found on some DVD players, high-end televisions and home theater equipment. Professional uses include cameras and VTRs based upon any of the above standards.

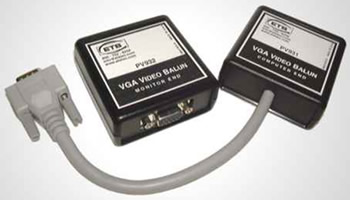

PV930 Series
VGA Video Balun, Set

  The ETS PV930 VGA Video Balun Set enables computer video signals adhering to the VGA/ SVGA/XVGA standards to be transmitted over Category 5 or better UTP wiring*. All modes and resolutions operate normally. Distance and quality of transmission are dependent on type of cable used and monitor sync circuitry. The circuitry in the PV930 set of VGA Video baluns is fully passive, requiring no external power.

CAUTION: This product not appropriate with most LCD and other flat-panel displays.

  For running multiple monitors and/or daisy-chaining applications, please consider the PV974G Active VGA product set.

PV934 Series
VGA Video Balun, Set

  The ETS PV934 VGA Video Balun Set enables computer video signals adhering to the VGA/ SVGA/XVGA standards to be transmitted over Category 5 or better UTP wiring. All modes and resolutions operate normally. Distance and quality of transmission are dependent on type of cable used and monitor sync circuitry. The circuitry in the PV934 set of VGA video baluns is fully passive, requiring no external power.

  The PV934, employing two cables, works with virtually all display types.

  For running multiple monitors and/or "daisy-chaining" applications, please note the PV970G or AV970G Active VGA product set.

PV950 Series
Isolated Video Balun

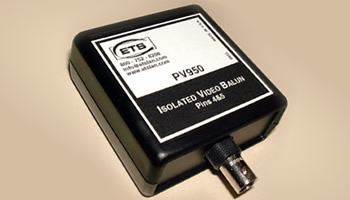

  The PV950 Isolated Video Balun from ETS is designed for baseband (CCTV), NTSC, PAL and SECAM signals. The PV950 blocks the effects of ground loops (visual ripples and warps in the video image, often referred to as "hum bars") when sending baseband video signals over Category 5 or better 100Ohm twisted pair cabling (UTP or STP).

  The PV950 uses special circuitry to block noise ingress at the point of entry to the Category 5 cabling, yielding a better transmission medium for baseband video, especially over the longer distances required by many current applications. The baluns, passive (no power required) devices, convert baseband signals from the 75Ohm coax cabling of any source equipment. The PV950 creates a balanced signal and sends it over 100Ohm UTP wiring, then converts back at the receiving end, yielding excellent picture quality.

PV990 Series
SDI Splitters

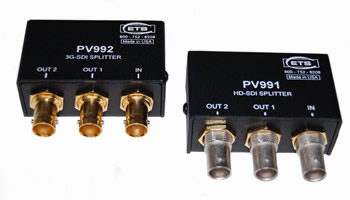

  The ETS PV990 Series SDI Splitter is a passive, versatile and easy-to-use video splitter designed for studios and on-location productions, as well as live performance venues. The HD-SDI Splitter can be used for monitoring in a wide variety of installations and locations.

  The PV990 Series SDI Splitter supports all standard serial digital video data rates up to 3Gbps and is designed to split a SMPTE video signal into two full-quality broadcast video signals and send them to video monitors or other digital devices over RG6 or RG59U coax cable. Distance varies depending on the type of cable, source and display equipment used in the system.

    Terminating any unused port with a 75ohm terminator is recommended in order to achieve the specified performance.

    ETS also offers a 2 RU high panel (ETS - PV993) which allows up to 16 splitters to be installed.

Info	Part#	Price (ea.)	Purchase
HD SDI Splitter (1) FBNC to (2) FBNC. 1 input, 2 outputs	PV991	$178.40
3G SDI Splitter (1) FBNC to (2) FBNC, 1 input to 2 outputs	PV992	$278.80
19" Panel, 2 RU - Accomodates up to 16 splitters	PV993	$108.10
HD SDI Splitter (1) FBNC to (4) FBNC. 1 input, 4 outputs	PV995	$545.95

InstaSnake PV220™ Series
Video Products - Balun

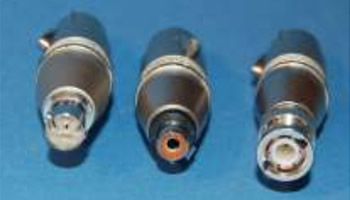

The ETS InstaSnake Video Balun™ is ideal for use with existing InstaSnake Adapter™ boxes. InstaSnake Baluns allow consumer and commercial users of video equipment to connect to an InstaSnake Adapter box. By plugging InstaSnake Baluns into InstaSnake Adapter boxes, the user can send unbalanced composite video signals.

Two InstaSnake Adapter boxes and two InstaSnake Baluns are needed to transmit video signals. One channel is used for each balun on each InstaSnake box. The same channel must be used on each InstaSnake Adapter box.

InstaSnake Baluns are handy for those who have InstaSnake Adapter boxes. All that is needed is to plug InstaSnake Baluns into InstaSnake Adapter boxes wherever a change of a signal application is needed. Changes are very simple and quick. No power is needed as the units are passive.

Many balun configurations are available to meet your connectivity requirements: Male or Female BNCs, RCA jacks to Male or Female XLRs.
