Other Products

Cables, Serial Data, Precision Instrumentation Baluns, pair-splitters, Audio & Video transformers, IBM Midrange and Mainframe Connectivity.


Blue Jeans Cable™ Blue Jeans Cable™   Video   PDF
Ethernet Cable

  These Cat5e and Cat5e+ cables are fitted with etherCon carriers to fit ETS InstaSnake audio adapters.  Each assembly is made with US-made Belden cable, and is fully certification-tested to ensure specification compliant performance for return loss and crosstalk.

  The etherCon cable carriers provide excellent strain relief to ensure that flexion or pulling on the cable will not compromise connection integrity -- resulting in consistent, reliable performance in the field in any application from audio to data.

  Belden Cable: The 1305A and 1700A are unshielded cable. The 1533R is shielded cable.

  Blue Jeans Cable: BJC unshielded Cat6 is also available. All cables come in black and grey colors.

Info Part# Price Purchase
25ft 1305A cable with etherCon cable carriers 1305A-025-xx $63.50
50ft 1305A cable with etherCon cable carriers 1305A-050-xx $106.75
100ft 1305A cable with etherCon cable carriers 1305A-100-xx $193.00
200ft 1305A cable with etherCon cable carriers 1305A-200-xx $352.50
25ft 1533R cable with etherCon cable carriers 1533R-025-xx $40.50
50ft 1533R cable with etherCon cable carries 1533R-050-xx $60.50
100ft 1533R cable with etherCon cable carriers 1533R-100-xx $100.50
200ft 1533R cable with etherCon cable carriers 1533R-200-xx $167.50
25ft 1700A cable with etherCon cable carriers 1700A-025-xx $29.00
50ft 1700A cable with etherCon cable carriers 1700A-050-xx $39.25
100ft 1700A cable with etherCon cable carriers 1700A-100-xx $59.50
200ft 1700A cable with etherCon cable carriers 1700A-200-xx $87.25
25ft BJCCat6 cable with etherCon cable carrier BJCCat6-025-xx $34.25
50ft BJCCat6 cable with etherCon cable carriers BJCCat6-050-xx $48.00
100ft BJCCat6 cable with etherCon cable carriers BJCCat6-100-xx $75.50
200ft BJCCat6 cable with etherCon cable carriers BJCCat6-200-xx $117.50
go to top

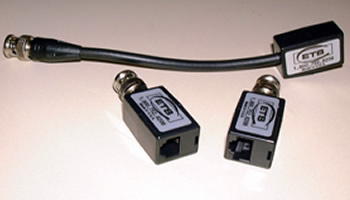

COAX Baluns COAX Baluns     PDF
IBM Mainframe

  ETS Mainframe Baluns, using Balanced Line™ Technology, enable an IBM© mainframe network to operate over unshielded pair (UTP) wiring for easy low-cost installation and maintenance. ETS baluns enable the greatest reliable cable distances ("reach"). Reach assures a better and more reliable operation at shorter distances.

  Data communication reliability is achieved due to the outstanding noise rejection made possible by Balanced Line™ construction. The ETS design offers noise rejection performance that assures reliable operation in all installations.

Info Part# Price Purchase
Coax Balun, Male BNC to RJ45 on 15' UTP Cord EB-MBNC-45-4-15C $31.50
Coax Balun, Male BNC 6" pigtail to RJ45 on 15' UTP Cord EB-MBNC-45-4-P-15C $31.50
Coax Balun, Male BNC to RJ45 EB-MBNC-45-X $20.00
Coax Balun, Male BNC 6" pigtail to RJ45 EB-MBNC-45-X-P $30.75
go to top


EB-SDB9 Series EB-SDB9 Series     PDF
Serial Data Baluns

  The ETS Serial Data Baluns transform RS232 two-way signaling without additional control signals to run over Cat 5 cabling.

  The Serial Data Balun balances the transmit and receive signals and increases the distance signals can be sent up to 1000 feet. The result is similar to RS422 performance.

Info Part# Price Purchase
Set, Serial Data Baluns: EB-SDB9-F + EB-SDB9-M EBSDB9-SET $140.00
Serial Data Balun, DB9-x 2" pigtail pins 2,3 & 5 to RJ45 jack, pins 1,2 & 7,8 EBSDB9-X $70.00
Serial Data Balun/S-Video, DB9-F 2" pigtail + Mini Din to RJ45 jack, (S-Video) pins 1,2 & 7,8 (Serial Data) pins 4,5 & 3,6 PV7006 $140.00
Serial Data Balun/S-Video, DB9-M 2" pigtail + Mini Din to RJ45 jack, (S-Video) pins 1,2 & 7,8 (Serial Data) pins 4,5 & 3,6 PV7007 $140.00
Serial Data Balun/Composite Video, DB9-M 2" pigtail + (1) FBNC to RJ45 jack, (Video) pins 5,4 (Serial Data) Video) pins 1,2 & 7,8 PV7013 $101.50
Serial Data Balun/Composite Video, DB9-F 2" pigtail + (1) FBNC to RJ45 jack, (Video) pins 5,4 (Serial Data) Video) pins 1,2 & 7,8 PV7014 $101.50
go to top


ES101 ES101     PDF
Pair Splitter to RJ45 jack to RJ45 jack

  On occasion, it is desirable for several signals to share a single connecting cable. The ETS Pair Splitter (ES-101) can be placed at one end of the connecting cable where the Pair Splitter/Combiner places each of the four pairs of Cat3 or better cable onto a common jack. At the other end of the cable run, the second Pair Splitter breaks out each pair to its own individual jack.

  The Pair Splitter is a convenient tool for installers to carry in their tool boxes, as it can split or combine two or more signals on Cat3 or better cable, thus saving time for pulling extra cables.

$35.00  item# ES101 go to top


PA800XFMR PA800XFMR     PDF
Audio Transformer

  The ETS Audio Transformer is ideal for use in applications sending line-level audio signals. Note that signals may be sent in either direction.

  By balancing the audio signal as well as isolating it, signals can be dependably sent over 100 meters.

$18.50  item# PA800XFMR go to top


PV840XFMR PV840XFMR     PDF
Video Balun

  The ETS Video Balun converts an unbalanced baseband signal to a balanced signal in order to run over structured UTP cabling. The Video Balun requires a pair of balancing resistors. (Note the ETS Special user diagram).

  The ETS Video Balun grants the freedom to use UTP instead of costly coax to transmit baseband video signals throughout a facility, with better signal characteristics and lower cost. Depending upon the application, installers may be able to utilize previously installed wiring, with a corresponding dramatic improvement in cost of installation.

$13.50  item# PV840XFMR go to top


PI100 Series PI100 Series   Video   PDF
Precision Instrumentation Balun

  The ETS PI100 Series is a 3GHz instrumentation balun for testing the performance of cables or connectors designed to TIA, IEC, and related testing organization specifications. The PI100 has a useful bandwidth of four decades, from 300KHz to 3GHz. No other instrumentation balun offers a range as wide or as high.

  The ETS Precision Instrument Balun is useful for a variety of tests, including insertion loss, return loss, near-end and far-end crosstalk, balance, and CMRR.

  Transmission line techniques are employed to achieve bandwidths more than twice that achievable with transformer techniques, and five transmission lines are built into each balun. The unique design for the Precision Instrument Balun has been issued US Patent# 7,443,263 B2 (10/08)

  Input is unbalanced 50-ohm SMA connector. Output is two unbalanced 50Ohm SMA or SMB connectors configured as a balanced 100Ohm circuit.

Expedite fees will be added to customer purchase orders for custom and non-stocked parts having a 2 week or less lead time

Info Part# Price Purchase
Precision instrumentation balun, Female-SMA connector to (2) Male-SMB connectors PI101 $1044.00
Precision instrumentation balun, Female-SMA connector to (2) Female-SMA connectors PI102 $1049.00
go to top


Twinax Series Twinax Series     PDF
Twinax Baluns

  ETS Twinax Baluns feature Balanced Line™ Technology, enabling a network to operate over unshielded twisted pair (UTP) wiring for economical installation and maintenance. In addition to enabling the greatest continuous cable distances ("reach"), the baluns also achieve the best data communications reliability and most trouble-free operation of any balun made for IBM® Systems AS400 or S3X.

  The ETS Twinax Balun Balanced Line™ requires no external power and is transparent to signal protocol and speed. ETS baluns achieve superior low-noise performance due to their patented noise-blocking magnetics design.

Info Part# Price Purchase
Twinax to RJ45 jack, pins 4,5 EB-TWINAX-45-4 $47.00
Twinax to RJ45 jack, pins 5,4 EB-TWINAX-45-5 $47.00
Twinax to RJ45 jack, pins 1,2 EB-TWINAX-45-X $47.00
Twinax to RJ45 jack, pins 4,5,6 in pigtail EB-TWINAX-45-X-P $47.00
go to top

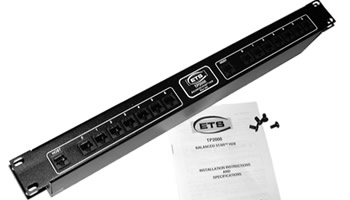

TP2000 Series TP2000 Series     PDF
IBM Midrange Passive Hubs

  The ETS TP2000 Balanced Star™ hub is designed to give system AS400 and S3X networks greater system dependability by delivering clear signals in both directions to IBM® specifications. The TP2000 uses a minimum of components and no external power, for greater reliability.

  The TP2000 uses passive balun technology to split the data signal that is totally system-transparent. This proprietary impedance-matched Balanced Line™ technology achieves outstanding impedance balance, and low noise performance. Balanced Line™ technology rejects the most reflected and induced noise within the network wiring, and enables the greatest signal distance of any non-powered hub.

  The TP2000 comes in sizes to support 2, 4 or 8-host ports and up to 56 workstations within a single rack or wall-mount enclosure.

Info Part# Price Purchase
7 ports, RJ11, 1 host, 1-19" rack space TP2000-1-11-3 $381.00
7 ports, RJ45, 1 host, 1-19" rack space TP2000-1-45-X $381.00
14 ports, RJ11, 2 hosts, 1-19" rack space TP2000-2-11-3 $680.00
14 ports, RJ45, 2 hosts, 1-19" rack space TP2000-2-45-4 $680.00
28 ports, RJ11, 4 hosts, 2-19" rack spaces TP2000-4-11-3 $1299.50
28 ports, RJ45, 4 hosts, 2-19" rack spaces TP2000-4-45-4 $1299.50
56 ports, RJ11, 8 hosts, 3-19" rack spaces TP2000-8-11-3 $2430.00
56 ports, RJ45, 8 hosts, 3-19" rack spaces TP2000-8-45-X $2430.00
go to top
